MagniLink AIR – system overview

MagniLink AIR is a product family that consists of several different products and accessories that can be adapted and combined in a number of different ways to make everyday life easier for users with visual impairment. Below we give an overview of the system and its various parts. More in-depth information about the various products such as MagniLink AIR Uno, MagniLink AIR Duo and MagniLink AIR Distance can be found on each product page.

Adapt and combine for a functioning everyday life

The foundation of MagniLink AIR is our MagniLink software used on a computer (PC, Mac, Chromebook) or on a control unit if you don’t have access to a computer. Various types of wireless or wired cameras and other accessories that you can combine in different ways are then connected. In this way, MagniLink AIR can be adapted to each user’s unique needs. No matter how you choose to design the system, you always have access to lots of useful functions that make everyday life easier and create new opportunities.

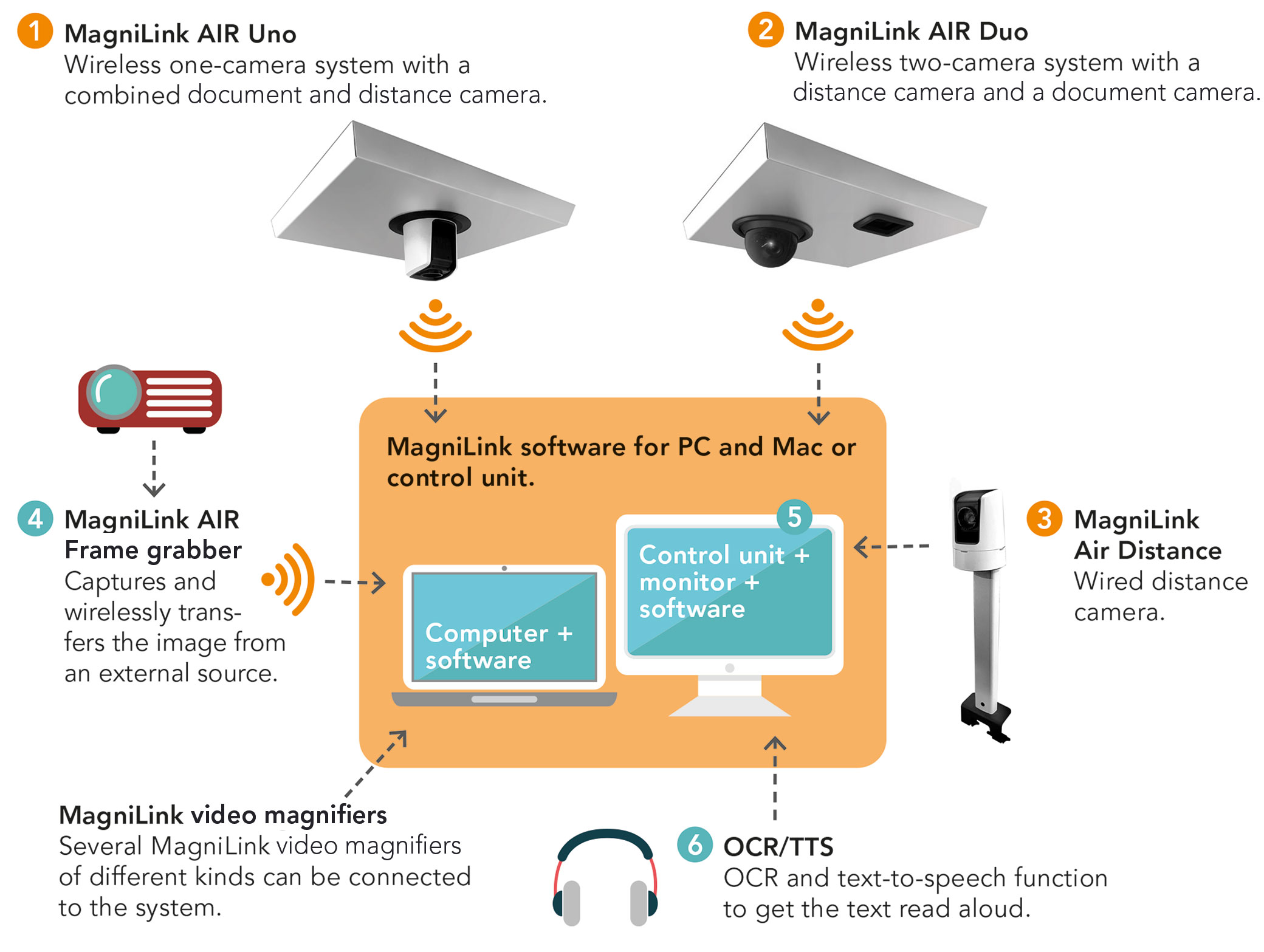

This is how the system is structured:

1. MagniLink AIR Uno

A wireless camera that can be used both as a reading and distance camera. The camera is normally mounted in a suspended ceiling with 600 x 600 mm ceiling tiles, but can also be mounted in a standard ceiling. The device can be used individually or for image sharing between multiple cameras and can then be combined with the MagniLink AIR Distance camera or a MagniLink reading camera, such as MagniLink S Premium 2 or MagniLink PRO.



2. MagniLink AIR Duo

A wireless dual camera system, where one camera is used as a reading camera and the other as a distance camera. The system is normally attached to a suspended ceiling with 600 x 600 mm ceiling grids, but can also be attached to a regular ceiling.



3. MagniLink AIR Distance

A wired distance camera that is available in versions with table mount, wall mount or ceiling mount. The device can be used independently, together with MagniLink AIR Uno – or a MagniLink reading camera.



Customize with accessories

Since each user is unique and has different needs, it’s important to be able to adapt and combine the camera system to support the user in the best way. When you create a MagniLink AIR camera system, you can therefore choose from a number of practical
accessories. And best of all, all accessories fit, whether you choose a MagniLink Uno, Duo or Distance.



4. MagniLInk AIR Framegrabber

An accessory for MagniLink AIR Uno and Duo. A device that allows you to wirelessly capture the image from an external image source, such as a projector or a smartboard. Does not work with MagniLink ChromeViewer.



5. Control unit

Applied if MagniLink AIR is to be used without a computer. The image from your camera system is then displayed on a separate monitor instead. Comes with pre-installed software and a control box. Can also be controlled with keyboard and computer mouse, available as accessories.



6. OCT/TTS

As an option to the software, there is a text-to-speech function, TTS. This function makes it possible, among other things, to OCR-process, edit and save text – and have the OCR-processed text read aloud.



Övriga tillbehör

There are additional accessories to facilitate use, including an external control box to control the system, which can help if you find it difficult to – or if you prefer not to – control the system directly from the software or computer keyboard. The external control box only works with MagniLink PCViewer.



Flexible system

MagniLink AIR is a flexible system that makes everyday life easier for the user. The cameras are motorized and controlled from the software via the mouse pointer, keyboard or from an external control panel. By splitting the screen between the image from the distance camera and the reading camera, the user can more easily share the same information as his or her class mates, which increases both participation and independence.



Wifi repeater for increased accessibility

In almost all situations, it’s important to be able to use the cameras and simultaneously be connected to the school’s network or internet. This is not a problem as our wireless camera systems include a wifi repeater that enables wireless access to a connected network / internet even though the computer is connected wirelessly to the camera system.





Mac user? Use MagniLink MacViewer

Below you can download the software MagniLink MacViewer that enables your MagniLink Video Magnifier to operate with your Mac computer. The software is free to download but if you don´t have a licensed MagniLink camera the words “Unvalid license” will be present at the screen. After a few minutes the picture will disappear. If you want to test a few more minutes you can restart the camera again.


Please download

MagniLink MacViewer v 3.2 Full version for Mac
(for macOS version 10.14 or later)


MagniLink S software v 2.5 Full version for Mac
(for macOS versions 10.11 to 10.14)

MagniLink S software v 2.3 Full version for Mac
(for macOS versions older than 10.11)















PC user? Use MagniLink PCViewer

Below you can download the software MagniLink PCViewer that enables your MagniLink Video Magnifier to operate with your PC.

If you don´t have a licensed MagniLink camera the words “Unvalid license” will be present at the screen. After a few minutes the picture will disappear. If you want to test a few more minutes you can restart the camera again.

Choose either the "Full version" for a complete software, including almost all available languages (note that the large file size can cause significant download time) or the "No language version" (best choice for everyone not using a text-to-speech-model).

Users with a Text-to-speech-model can complete the "No language version" with the languages in use, notice that then the OCR Package must be installed.

If you use Google Chrome as a browser and have trouble downloading the software, right-click and choose "Open in new tab" or try another browser.



MagniLink PCViewer v 10.4.8.0 Full version PC



MagniLink PCViewer v 10.4.8.0 No Language version PC


MagniLink PCViewer Arabic language
MagniLink PCViewer AU English language
MagniLink PCViewer Belgian Dutch language
MagniLink PCViewer Bulgarian language
MagniLink PCViewer CA French language
MagniLink PCViewer Croatian language
MagniLink PCViewer Czech language
MagniLink PCViewer Danish language
MagniLink PCViewer Dutch language
MagniLink PCViewer Finnish language
MagniLink PCViewer French language
MagniLink PCViewer German language
MagniLink PCViewer Greek language
MagniLink PCViewer Hebrew language
MagniLink PCViewer Hungarian language
MagniLink PCViewer Italian language
MagniLink PCViewer Mexican Spanish language
MagniLink PCViewer Norwegian language
MagniLink PCViewer Polish language
MagniLink PCViewer Portuguese language
MagniLink PCViewer Romanian language
MagniLink PCViewer Russian language
MagniLink PCViewer Slovak language
MagniLink PCViewer Spanish language
MagniLink PCViewer Swedish language
MagniLink PCViewer Turkish language
MagniLink PCViewer UK English language
MagniLink PCViewer US English language




MagniLink PCViewer OCR Package

MagniLink PCViewer WiFi (for MagniLink AIR)






























































MagniLink PCViewer - updates in version 10.4.8.0



New features

  • Stepless rotation.
  • Presets also saves artificial colors rotations and more.
  • Possible to use keyboard to zoom and pan in notepad.
  • Rotations in notepad.
  • Possible to make hotkeys global.
  •  Active camera and splitmode is saved.
  •  Animation when switching split mode.


Bug fixes

  • Fixed video recording bugg from 10.3.x.x
  • Paste and OCR.
  • Fixed bugg in the "Enter license" dialog.
  • Overview mode in the control unit.
  • Removed features not accessible in the control unit.
  • Improvements regarding accessibility:
           - Replaced the color dropdown button with two buttons (same as MacViewer).
           - Possible to trigger mode change with space or enter.
           - Easier to select font in the dropdown list.
           - Slide switches for volume and speechrate are now in tab order and can be changed by the keyboard.
           - Improved navigation in settings menu.
           - Improved focus visibility.



MagniLink PCViewer - updates in version 10.3.8.10



  • Notepad with lots of features for drawing, marking and writing in a document. The tool is, for example, excellent for marking in texts or filling in forms or exams that then easily can be saved or forwarded.
  • Support for multiple video streams and split screen between them, such as the use of multiple simultaneous Magnilink cameras.
  • Support for motorized cameras in the MagniLink AIR family. You can control these cameras directly from the software via icons, via the keyboard or by dragging the mouse pointer in the camera image. You can also store up to three different camera positions which for example facilitates for a student who quickly needs to switch between different camera positions.
  • Portuguese localization which means that menus and icons in the software can be displayed in Portuguese.
  • PCViewer mouse pointer replaced with standard Windows mouse pointer
  • Minor bug fixes
